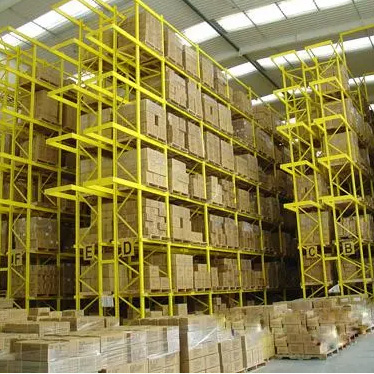

Narrow rack

Shelf characteristics
1. The main structure of the narrow roadway shelf is the same as that of the heavy cross beam shelf, so it is named because the forklift passage is narrow
2. The narrow roadway shelf forklift passage is only about 1.6 meters, greatly improving the space utilization
3. The action guide rail of three-way stacking forklift is installed on the ground at the bottom of narrow roadway shelf
4. The material handling forklift is limited to a special three-way stacking forklift that slides along the established guide rail
Bearing capacity: 500KG-8000KG per floor, customized as required
Picking method: forklift access, special three-way stacking forklift is required
Structure: The main body of the shelf is the same as the heavy shelf, but the difference is that the moving guide rail of "three-way stacking forklift" is installed on the ground at the bottom of the shelf, and the guide rail is generally made of unequal angle steel
Passage requirements: Forklift passage is 1.6-2 meters higher than ordinary heavy shelves
Warehouse requirements: applicable to warehouse height of more than 3m and shelf height of up to 15m
Advantages: large carrying capacity, simple structure, convenient disassembly and assembly, convenient goods picking, small passage area, high space utilization
Scope of application: warehouses with large amount of goods, frequent goods in and out, high requirements for goods picking, and the desire to increase the number of storage spaces
Supporting accessories: guardrail, corner guard, partition and steel plate
Product extension: double deep shelf, heavy shelf
