Shuttle Rack

Bearing capacity: 500KG-2000KG per pallet, customized as required
Picking method: semi-automatic, shuttle+forklift access

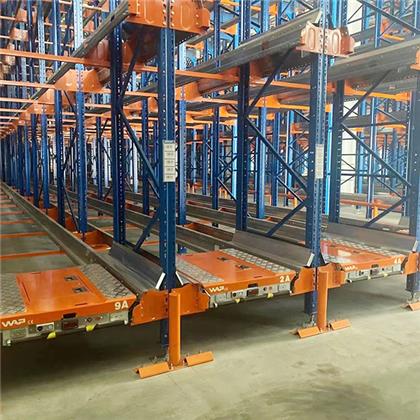

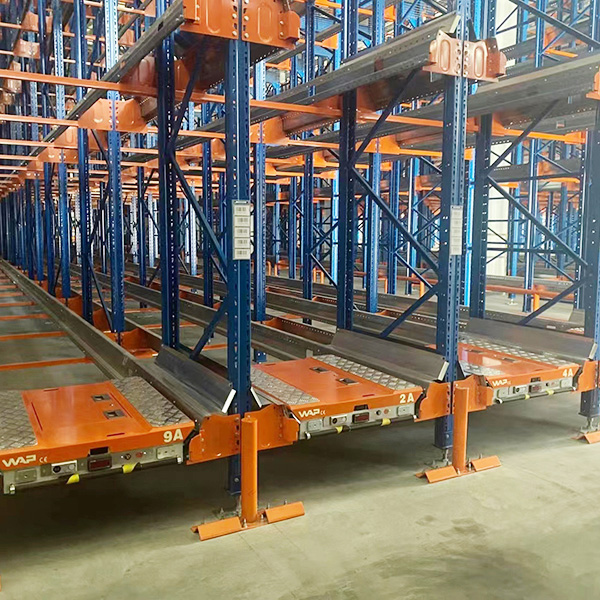

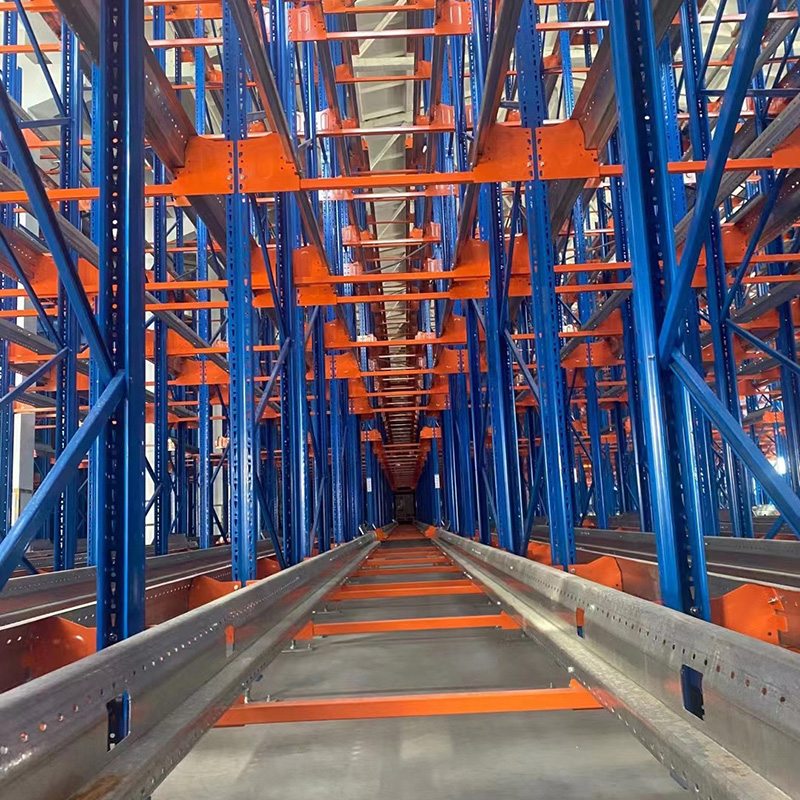

Structural appearance: It is composed of a shelf and a shuttle car. The shelf body consists of columns, crossbeam corbels, cross braces, front and rear baffles, corbels, guide rails, guide plates, forklift limiting angles, etc
Passage requirements: no passage is required, and the shuttle car carries goods automatically in the rack
Warehouse requirements: the ground flatness is high, and the error is within 2cm
Advantages: high-density storage, high working efficiency, FIFO or FIFO, high safety factor
Scope of application: food, beverage, chemical, tobacco and other industries with large quantities of single varieties and relatively single items, as well as supporting accessories for cold storage operation: anti-collision guardrail, foot guard, forklift stop block
Product extension: through the shelf
